Types of Coating
External 3 Layer Polyethylene / Polypropylene Coatingtypes
Capacity :-
- Pipe Size: 1” - 4” OD ( 140 sq. mtr / hr, coating thickness :-3.7mm Max. )
- Pipe Size: 4” – 48” OD ( 300 sq. mtr / hr, coating thickness :-3.7 mm Max. )
External Fusion Bonded Epoxy (Single / Dual Layer) Coating
Capacity :-
- 300 sq. mtr / hr, thickness :-600 micron Max.
- Pipe Size: 4”- 48” OD
Internal Epoxy Coating (Solvent Based / Solvent Free)
Capacity :-
- 150 sq. mtr / hrThickness :-500 micron Max.
- Pipe Size: 6”- 22” ID

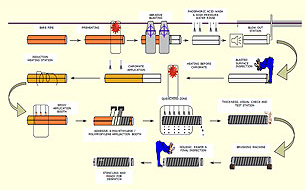

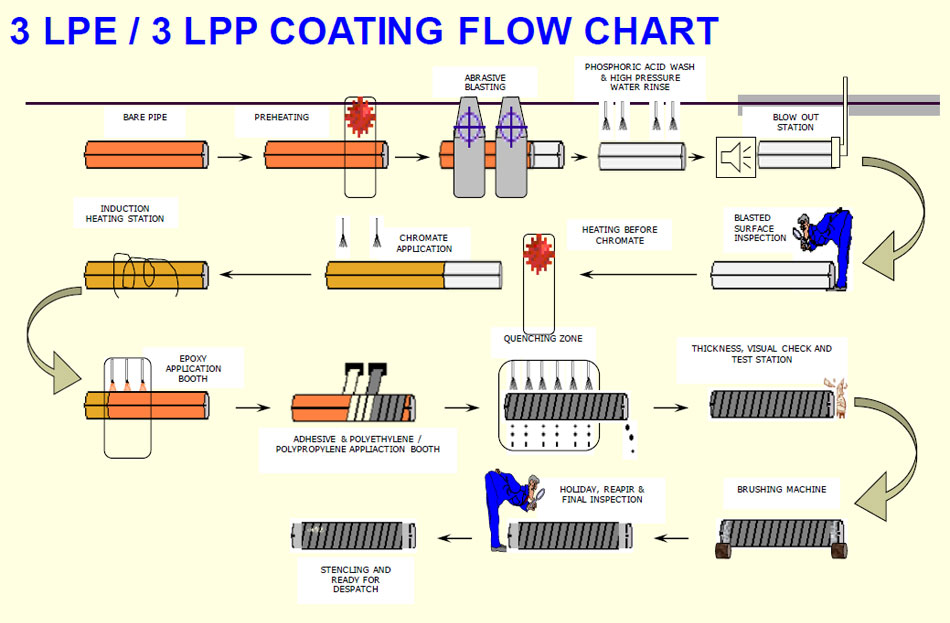

3 LPE / 3 LPP COATING FLOW CHART
To view the enlarge image of 3 LPE / 3 LPP COATING FLOW CHART, please click here »

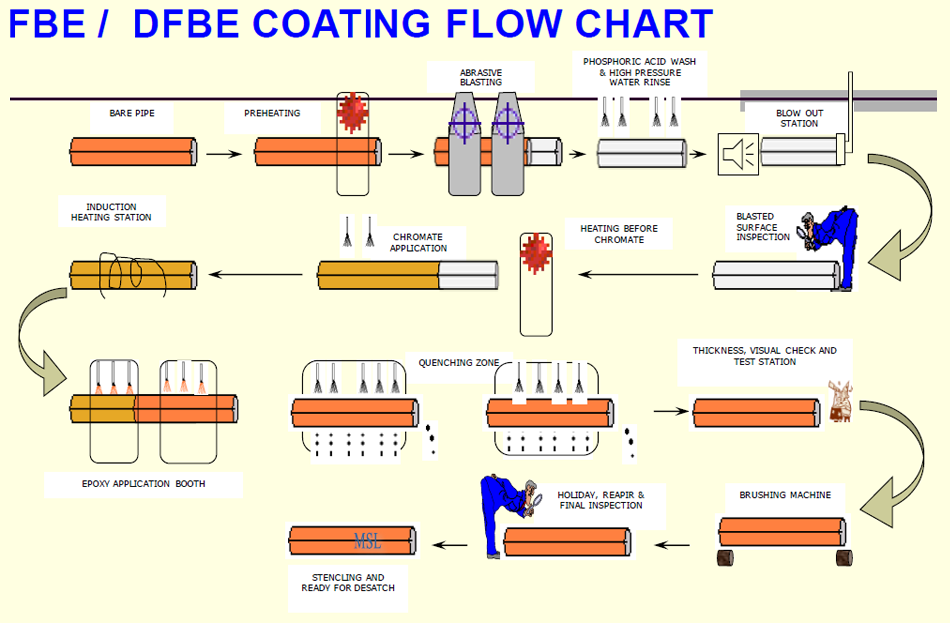

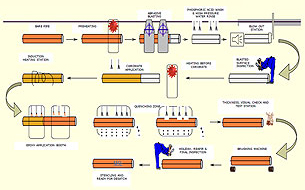

FBE / DFBE COATING FLOW CHART
To view the enlarge image of FBE / DFBE COATING FLOW CHART, please click here »

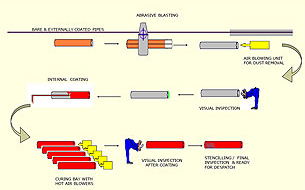

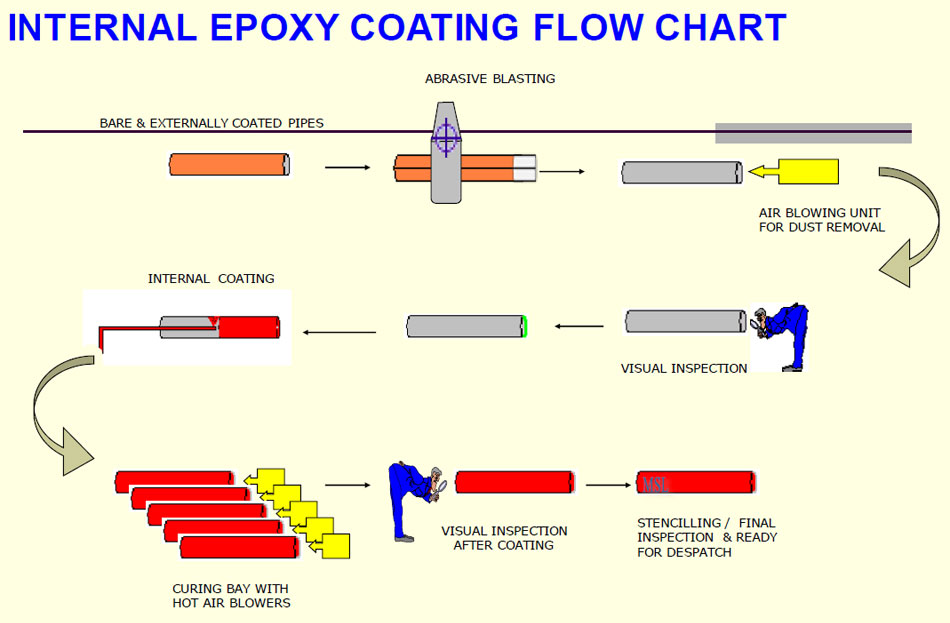

INTERNAL EPOXY COATING FLOW CHART
To view the enlarge image of INTERNAL EPOXY COATING FLOW CHART, please click here »
TESTING FACILITES
- Inhouse facility for raw material as well as finished coating.
- All testing facility for external and internal coating as per various specification.
- Surface profile detector with printing facility.
- Peel test assembly as per din 30670 method -II.
- Cathodic disbondment facility for 14 tests at a time.
- Differential scanning calorimetry from Metller for virgin & cured epoxy.
SPECIFICATIONS LIST OF APPLICABLE NATIONAL & INTERNATIONAL STANDARDS FOR 3 LPE & 3 LPP, FBE & DFBECOATING
- DIN 30670
- DIN 30678
- DIN 30671
- CANADIAN SPECIFICATIONS
- NACE RP0394
- AWWA SPECIFICATIONS
POLYMERS REFERENCE SPECIFICATIONS FOR INTERNAL COATING
- API RP 5L 2
- ISO 15741
- NF A 49 –709
- BS –6920
- AWWA C 210
