UHS™ Structural Tubes
Ultra High strength, Seamless, Hot Rolled
Hollow Sections from ISMT
(conforming to EN 10210)

WIDEN YOUR POSSIBILITIES

Modern architectural projects make extensive use of seamless hot rolled, hollow sections. These structural elements as a result of their greater load bearing ability, lightness, availability in a wide range of wall thicknesses, and visual appeal, offer the architect unprecedented flexibility in design. The use of these tubes makes possible structures that are slender, light, aesthetically pleasing and yet very strong. If you are looking to create an iconic structure, UHS hollow sections offer numerous options. UHS hollow sections also find use in a variety of other structural applications such as the construction of off-shore derricks, agricultural machinery, crane booms, material handling systems, ships, and theme park rides. The special fine grain, high strength, quench and tempered UHS hollow sections described in this brochure are particularly well suited for such applications.

INHERENT STRENGTH

Unlike welded hollow sections, which are made by bending a steel strip and welding it longitudinally, a seamless hollow section is made from solid steel billet by piercing and elongating it. The absence of a weld, and the associated discontinuity in metal properties, ensures complete structural integrity of these hollow sections. Furthermore, since these sections are hot rolled and not cold formed as in the case of welded tubes, the material properties are completely uniform along the cross section. All our tubes conform to European Standards (EN 10210) for hotfinished structural hollow sections.

THE UHS ADVANTAGE

Total metallurgical integrity
UHS hollow sections do not contain any weld and are hot formed. As a result, these have a fully normalized grain structure and uniform hardness along the cross section. Unlike their welded counterparts, these do not suffer from any weak spots, discontinuities in material properties, or residual stresses along the perimeter of the section.

High strength options
These sections are available in a wide range of steel grades including high strength grades that provide additional flexibility in design. These high strength grades include fine-grain steels and quench and tempered steels.

Wide range of wall thicknesses
Unlike welded structural hollows, which are restricted in wall thickness, UHS hollows are available in a very wide range of wall thicknesses - upto 40mm thick. This makes possible the design of structural elements with uniform external diameters under varying loads. For example, following this principle, the column diameter can be kept constant right through the height of the building.

Reduction in welding material and larger connecting areas

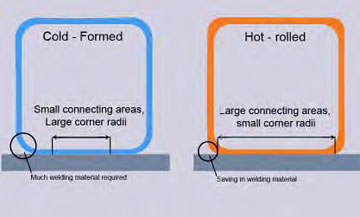

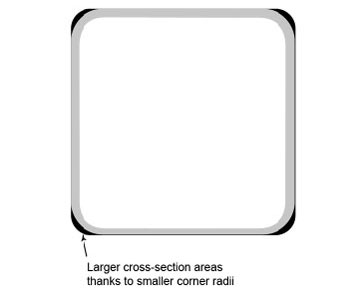

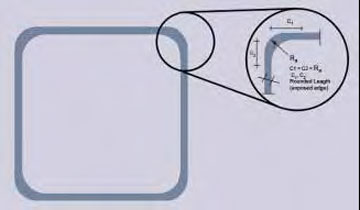

Hot rolled hollow sections have smaller corner radii, particularly when higher wall thickness tubes are involved. As a result, the welding material required reduces and the flat contact area increases.

Higher load carrying capability
As a result of the reduced corner radii mentioned above, hot rolled hollow sections have a greater sectional moment and can,therefore, carry higher loads.

Higher buckling loads
Hot rolled seamless sections exhibit better buckling properties than their cold-formed welded counterparts. For this reason, Eurocode 3 norms allow higher buckling loads to be assigned to hot rolled sections.

Effective use of annular space
The empty space within the hollow section can be utilized effectively: UHS columns can be filled with concrete for added strength or with water for fire protection. Alternatively, this space can be used for conveying air-conditioning, electricity or water.

Smaller weld volumes
Weld volumes can be minimized by choosing smaller diameter sections with higher wall thicknesses.

APPLICATION

• Office buildings
• Industrial structures and bridge construction
• Sports complexes and stadiums
• Airport terminal
• Agricultural and farming equipments
• Frame structures and body work for locomotives
• Machine building
• Off-shore installations
• Ship building and material handling industry

MANFACTURING PROCESS

At ISMT, we believe the only way to guarantee quality is to stand responsible for the entire process. For this reason, the steel used for the manufacture of UHS hollow sections is produced in-house through the electric arc furnace route maintaining complete control of the entire production process. The raw material mix is chosen and prepared carefully to ensure the highest standards of cleanliness. All heats are fully killed, ladle refined and vacuum degassed before continuous casting into billets. These ultra-clean round steel billets form the starting point for the manufacture of UHS hollow sections.

The round steel billets are ?rst heated to between 1,150 and 1,350º C in a rotary hearth furnace. After heating, these billets pass through a cross-roll piercing mill where a carefully positioned piercing point drives a hole through the solid billets to produce elongated rough hollow blooms. These hollow blooms are then rolled over a mandrel, either through a three roll Assel Mill or through a PQF Mill, and eventually through a stretch reducing mill, to produce accurately sized, hot rolled hollow sections.

Stringent process control continues right through the manufacturing and testing process so that we are able to consistently deliver UHS hollow sections with the exact qualities that are required.

NON-ALLOYED STRUCTURAL STEELS

Chemical analysis (%)

GRADE C Si Mn P S N Specified thickness( mm)           ≤ 40 S235JRH ≤ 0,17 - ≤1,40 ≤ 0,040 ≤ 0,040 ≤ 0,009 S275J0H ≤ 0,20 - ≤1,50 ≤ 0,035 ≤ 0,035 ≤ 0,009 S275J2H ≤ 0,20 - ≤1,50 ≤ 0,030 ≤ 0,030 - S355J0H ≤ 0,22 ≤ 0,55 ≤1,60 ≤ 0,035 ≤ 0,035 ≤ 0,009 S355J2H ≤ 0,22 ≤ 0,55 ≤1,60 ≤ 0,030 ≤ 0,030 - S355K2H ≤ 0,22 ≤ 0,55 ≤1,60 ≤ 0,030 ≤ 0,030 -
Carbon Equivalents (cev) %
GRADE Specified thickness mm   ≤ 16 >16 ≤ 40 S235JRH ≤ 0,37 ≤ 0,39 S275J0H ≤ 0,41 ≤ 0,43 S275J2H ≤ 0,41 ≤ 0,43 S355J0H ≤ 0,45 ≤ 0,47 S355J2H ≤ 0,45 ≤ 0,47 S355K2H ≤ 0,45 ≤ 0,47
Mechanical properties GRADE Min. Yield Strength (ReH) Mpa Tensile Strength Rm) MPa Elongation % Minimum Min Impact Strength   Specified thickness mm Specified thickness mm Specified thickness mm           Long. Transv. T°C J   ≤ 16 >16≤ 40 ≤ 3 >3≤ 40 ≤ 40 ≤ 40     S235JRH 235 225 360-510 360-510 26 24 20 27 S275J0H 275 265 430-580 410-560 23 21 0 27 S275J2H 275 265 430-580 410-560 23 21 -20 27 S355J0H 355 345 510-680 470-630 22 20 0 27 S355J2H 355 345 510-680 470-630 22 20 -20 27 S355K2H 355 345 510-680 470-630 22 20 -20 40
FINE GRAIN STRUCTURAL STEELS Chemical Analysis (%) GRADE C Si Mn P S Nb V Al tot. Ti Cr Ni Mo Cu N S275NH ≤ 0.20 ≤ 0.40 0.50-1.40 ≤ 0.035 ≤ 0.030 ≤ 0.050 ≤ 0.08 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.30 ≤ 0.10 ≤ 0.35 ≤ 0.015 S275NLH ≤ 0.20 ≤ 0.40 0.50-1.40 ≤ 0.030 ≤ 0.025 ≤ 0.050 ≤ 0.08 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.30 ≤ 0.10 ≤ 0.35 ≤ 0.015 S355NH ≤ 0.20 ≤ 0.50 0.50-1.40 ≤ 0.035 ≤ 0.030 ≤ 0.050 ≤ 0.12 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.50 ≤ 0.10 ≤ 0.35 ≤ 0.020 S355NLH ≤ 0.18 ≤ 0.50 0.50-1.40 ≤ 0.030 ≤ 0.025 ≤ 0.050 ≤ 0.12 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.50 ≤ 0.10 ≤ 0.35 ≤ 0.020 S420NH ≤ 0.22 ≤ 0.60 1.00-1.70 ≤ 0.035 ≤ 0.030 ≤ 0.050 ≤ 0.20 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.80 ≤ 0.10 ≤ 0.70 ≤ 0.025 S420NLH ≤ 0.22 ≤ 0.60 1.00-1.70 ≤ 0.030 ≤ 0.025 ≤ 0.050 ≤ 0.20 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.80 ≤ 0.10 ≤ 0.70 ≤ 0.025 S460NH ≤ 0.22 ≤ 0.60 1.00-1.70 ≤ 0.035 ≤ 0.030 ≤ 0.050 ≤ 0.20 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.80 ≤ 0.10 ≤ 0.70 ≤ 0.025 S460NLH ≤ 0.22 ≤ 0.60 1.00-1.70 ≤ 0.030 ≤ 0.025 ≤ 0.050 ≤ 0.20 ≥ 0.020 ≤ 0.03 ≤ 0.30 ≤ 0.80 ≤ 0.10 ≤ 0.70 ≤ 0.025
Carbon Equivalents (CEV) %
GRADE Maximum Carbon Equivalent (CEV)   For specified thickness mm   ≤ 16 > 16 ≤ 40 S275NH 0.40 0.40 S275NLH 0.40 0.40 S355NH 0.43 0.43 S355NLH 0.43 0.45 S420NH 0.50 0.52 S420NLH 0.50 0.52 S460NH 0.53 0.55 S460NLH 0.53 0.55
Mechanical properties
GRADE Min. Yield Strength (ReH) MPa Tensile Strength (Rm) MPa Elongation % Minimum Minimum Impact Strength*   Specified thickness mm Specified thickness mm Specified thickness mm T°C J   = 16 > 16 = 40   Long. Transv.     S275NH 275 265 370-510 24 22 -20 40 S275NLH 275 265 370-510 24 22 -50 27 S355NH 355 345 470-630 22 20 -20 40 S355NLH 355 345 470-630 22 20 -50 27 S420NH 420 400 520-680 19 17 -20 40 S420NLH 420 400 520-680 19 17 -50 27 S460NH 460 440 540-720 17 15 -20 40 S460NLH 460 440 540-720 17 15 -50 27
FINE GRAIN, HIGH STRENGTH, QUENCH AND TEMPERED STEELS
application in the construction of bridges, cranes, off-shore structures, buildings, ships and other structures where reduction of dead weight without any loss of load bearing capacity is critical. Typical characteristics of these tubes are high yield strengths and good toughness with the guarantee of chemistry that is suitable for welding. Tubes are produced as per following chemical analysis that guarantee the required mechanical properties which generally conform to EN 10297 specifi cation.
CHEMICAL ANALYSIS (%)
C Mn vc P S Ni V Cr Mo ≤0.20 ≤1.70 ≤0.60 ≤0.025 ≤0.015 ≤1.20 ≤0.12 ≤0.50 ≤0.50
Mechanical Properties
GRADE TENSILE PROPERTIES IMPACT TEST*   Rp02 (MPa) min Rm (MPa) min A % Charpy KV long. Charpy KV Trasv.           long. min   (J min)     Wall thickness mm   Temperature   ≤ 20 > 20 ≤ 40 ≤ 20 ≤ > 20 ≤ 40 ≤   -20 °C -50 °C -20 °C -50 °C HS620 620                 HS690 690 650 770-960 720-930 16 55 - 27 - HS770 770 700 820-1000 750-960 15 50 - 27 - HS790 790
Sizes
circular hollow - sections
Outside Wall thickness                                   Diameter Mm                                     mm 8.0 2.6 2.9 3.2 3.6 4.0 4.5 5.0 5.6 6.3 7.1 8.0 8.8 10.0 12.5 16.0 20.0 30.0 40.0 21.3 1.08 1.20 1.32 1.43 1.57 1.71 1.86 2.01                       33.7     2.20 2.41 2.67 2.93 3.24 3.54 3.88 4.26 4.66 5.07               42.4     2.82 3.09 3.44 3.79 4.21 4.61 5.08 5.61 6.18 6.79 7.29 7.99           48.3     3.25 3.56 3.97 4.37 4.86 5.34 5.90 6.53 7.21 7.95 8.75 9.45           60.3       4.51 5.03 5.55 6.19 6.82 7.55 8.39 9.32 10.3 11.2 12.4 14.7         76.1       5.75 6.44 7.11 7.95 8.77 9.74 10.8 12.1 13.4 14.6 16.3 19.6 23.7 27.7     88.9         7.51 8.38 9.37 10.3 11.5 12.8 14.3 16.0 17.4 19.5 23.6 28.8 34.0     101.6           9.63 10.8 11.9 13.3 14.8 16.5 18.5 20.1 22.6 27.5 33.8 40.2     114.3             12.2 13.5 15.0 16.8 18.8 21.0 22.9 25.7 31.4 38.8 46.5 62.4   139.7             15.0 16.6 18.5 20.7 23.2 26.0 28.4 32.0 39.2 48.8 59.0 81.2   168.3               20.1 22.5 25.2 28.2 31.6 34.6 39.0 48.0 60.1 73.1 102 127 177.8                   26.6 29.9 33.5 36.7 41.4 51.0 63.8 77.8 109 136 193.7                   29.1 32.7 36.6 40.1 45.3 55.9 70.1 85.7 121 152 219.1                   33.1 37.1 41.6 45.6 51.6 63.7 80.1 98.2 140 177 244.5                       46.7 51.2 57.8 71.5 90.2 111 159 202 273.0                           64.9 80.3 101 125 180 230 Other outside diameter and wall thickness on request

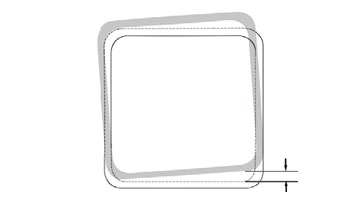

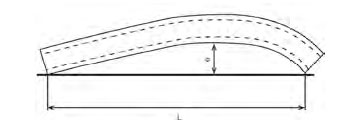

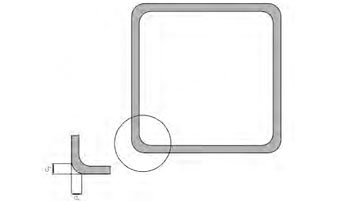

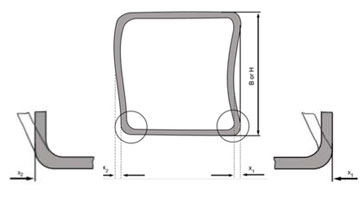

SQUARE HOLLOW – SECTIONS circular hollow - sections Size Wall thickness                               mm Mm                                   40x40 2.9 3.2 3.6 4.0 4.5 5.0 5.6 6.3 7.1 8.0 8.8 10.0 11.0 12.5 14.2 16.0 17.5 20.0 50x50 3.31 3.61 4.01 4.39 4.85 5.28 5.78 6.33 6.91                   60x60 4.22 4.62 5.14 5.64 6.26 6.85 7.54 8.31 9.14 10.0                 70x70 5.13 5.62 6.27 6.9 7.67 8.42 7.30 10.3 11.4 12.5 13.5 14.9 15.9 17.3         80x80   6.63 7.40 8.15 9.08 9.99 11.1 12.3 13.6 15.0 16.3 18.0 19.4 21.3         80x80     8.53 9.41 10.5 11.6 12.8 14.2 15.8 17.5 19.0 21.1 22.8 25.2         90x90     9.66 10.7 11.9 13.1 14.6 16.2 18.1 20.1 21.8 24.3 26.3 29.1         100x100       11.9 13.3 14.7 16.3 18.2 20.3 22.6 24.5 27.4 29.7 33.0 33.6       110x110       13.2 14.7 16.3 18.1 20.2 22.5 25.1 27.3 30.6 33.2 37.0 41.0       120x120         16.1 17.8 19.9 22.2 24.7 27.6 30.1 33.7 36.6 40.9 45.5 50.1     140x140           21.0 23.4 26.1 29.2 32.6 35.6 40.0 43.5 48.7 54.4 60.1 64.7   150x150               28.1 31.4 35.1 38.4 43.1 47.0 52.7 58.9 65.2 70.2   Other outside diameter and wall thickness on request               [Weight in kg/m] TOLERANCES Tolerances will be as per EN 10297 specifications. Tolerances according to EN 10210–2 Permissible deviation in external dimensions D, B and H …………….±1% With a minimum of ±0.5mm. Tolerance on wall thickness T …. -10% for Seamless section, local deviation of -12.5% are permissible. Permissible out-of-roundness 0 ………….2% out-of-roundness is calculated using the following equation: 0(%) = Dmax – DMin    X 100 D In the case of square USH sections, the wall thickness in the straight edge area must be checked the upper layer of the wall thickness is determined by the maximum weight.   External Corner Profile C1 and C2 = max. 3T (wall thickness) the distance between the intersection of the fl at side and the corner arc and the intersection of the projections of the fl at sides to the corner C1 and C2 shall be measured Maximum permissible deviation of squareness of sides …± 1º Permissible curvature of lateral surfaces concavity/convexity =1%. The value of relative concavity or convexity is calculated as follows: 0(%) = Dmax – DMin    X 100 D The Value of permissible concavity or convexity apply independent of the tolerances on External dimensions. The maximum permissible twist V is calculated using the following formula: V = 2mm + 0.5mm/m Permissible out-of-straightness = 0.2% related to the total section length, ie. 2mm/m Maximum mass tolerance per section = ±6%, ±8%.   LENGHT AND PERMISSIBLE DEVIATIONS   Type of length Available length(mm) Permissible deviation Ordering information re length Mill length 6000 – 16,000 1) none Fixed length ≥2,000 ±500 Required fixed length in mm   ≥2,000 –0 +10 Required fixed length in mm   ≤6,000       >6,000 –0 +15     All the steel grades indicated in this brochure have been specially developed so that they have a low carbon equivalent and are easily weldable using traditional welding procedures (provided generally accepted technical rules are followed). For very thick sections, precautions should be taken to avoid cold cracking. In such cases, pre-heating prior to welding is advisable. LENGHTS Standard lengths supplied by ISMT are from 5 to 10 mtrs long. Tubes in exact length based on specific request can also be supplied.   END PREPARATION Tubes with square cut ends or bevelled ends can be supplied.   PACKAGING AND MARKING Each tube is oiled internally and externally and then packed into round/ hexagon bundles. This ensures that tubes are protected from corrosion and that tubes retain their straightness during transport. Our standard marking (painting) includes: • Name and trade mark • Dimensions • Steel designation e.g. EN 10210 – S355J24 • Batch numbe INSPECTION AND TESTING Tubes are subjected to following tests (which conform to EN 10210) • Cast analysis • Tensile test • Impact test • Visual and dimensional check ISMT manufactures carbon/alloy steel and seamless tubes for: • Energy and Power Generation • Automotive Components • Hydraulic and Pneumatic Pressure Lines • Hydraulic Cylinders • Gas Cylinders • Mining and Construction • Bearings • General Engineering Applications • Oil and Petroleum Applications Product details are available on request.
